Microscope

XJB100

Your position ：Home >Microscope >Biological Microscope >XJB >XJB100

XJB100

XJB100 series biological microscope is equipped with excellent infinite flat field achromatic objective lens and large field eyepiece, with clear imaging and wide field of vision. The ideal design in line with ergonomic requirements adopts low-level focusing hand wheel, inward objective lens converter and built-in handle design, which makes the operation more convenient and comfortable, wider space and safer instrument handling. The product can be widely used in biology, medicine, industry, agriculture and other fields. It is an ideal instrument for medical treatment, teaching, scientific research and other institutions

1． Introduce

XJB100 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt and provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely.
They are the ideal instrument in medical treatment, teaching demonstration and scientific research.

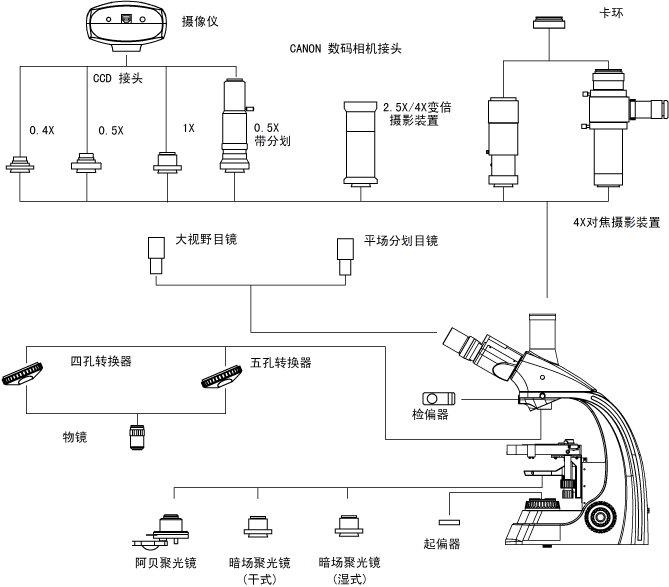

2． Structure

3． Image

成像圖1.jpg 成像圖2.jpg 成像圖3.jpg

Phase contrast observe Dark type observe Polarized observe

Specification		XJB100B	XJB100T
Optics System	Infinity Optical System F=200mm	●	●
Viewing Head	Binocular Head, Interpupillary distance 55~75mm(48-75mm optional),30°inclined, diopter adjustable.	●
Viewing Head	TrinocularHead,Interpupillary distance 55~75mm(48-75mm optional), 30°inclined, trinocular light is split 0/100, diopter adjustable.		●
Eyepiece	Wide field WF10X(Ф22mm)	●	●
Eyepiece	Dividing eyepiece 10X(field number:Ф22mm)	○	○
Polarization	Polarizer:360° rotatable stage	○	○
Polarization	Analyzer:Sliding type	○	○
Nosepiece	Quadruple（Backward ball bearing inner locating）	●	●
Objectives	Infinity Plan Achromatic 4X/0.10 WD=21mm	●	●
	Infinity Plan Achromatic 10X/0.25 WD=5mm	●	●
	Infinity Plan Achromatic 40X/0.65(S) WD=0.66mm	●	●
	Infinity Plan Achromatic 100X/1.25 (S,O) WD=0.36mm	●	●
Stage	Double Mechanical Stage （Size：193×155mm,movingrange：75×50mm）	●	●
Condenser	Abbe Condenser: NA=1.25 Rack & pinion adjustable	●	●
Filter	Blue filter and Ground glass	●	●
	Green(Φ32)	○	○
	Yellow(Φ32)	○	○
Focus System	Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.	●	●
llumination	3W LED,brightness adjustable	●	●
llumination	6V 30W Halogen lamp illumination	○	○
C-Mount	0.4X	○	○
	0.5X	○	○
	1X	○	○
	0.5X with dividing 0.1mm/Div	○	○
Phase contrast unit	Eyepiece： Centering telescope	○	○
	Infinity phase contrast plan achromatic Objective 10X/0.25 PHP	○	○
	Infinity phase contrast plan achromatic Objective 20X/0.40 PHP	○	○
	Infinity phase contrast plan achromatic Objective 40X/0.65 PHP(Spring)	○	○
	Infinity phase contrast plan achromatic Objective 100X/1.25 PHP(Spring, oil)	○	○
	Sliding phase contrast	○	○
Weight /Volumn	G.W. 8KGS, Meas.:284355CM
